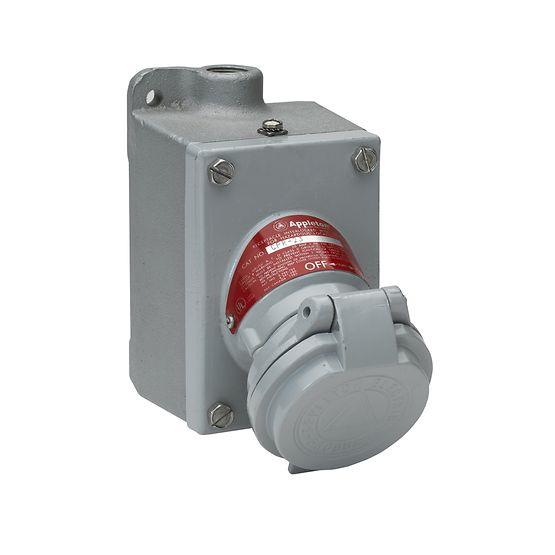

Appleton™ Contender™ CPS Factory Sealed 20 Amp Pin and Sleeve Receptacles

Brand: Appleton

Contender™ CPS Factory Sealed 20 Amp Pin and Sleeve Receptacles provide explosionproof protection for stationary or portable equipment in hazardous, damp or corrosive locations. It features delayed action construction; to operate, insert plug to first stop, move Slide-Lok™ slide to the right and push plug fully forward to energize. The Contender CPS meets all UL and CSA requirements for ground fault protection in hazardous locations when the GFCI cover is used.
Features
  • Covers are UL Listed when used with Contender™ Series mounting bodies.

  • Plug mechanical cable clamps prevent strain on cables – they meet or exceed UL strain relief pull-out requirements.

  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking.

  • Delayed action construction: insert plug partially rotate slide on front of receptacle and insert plug fully.

  • Factory sealed: external seals not required.

  • Plug and receptacles are supplied with pressure terminal connectors.

    • Specifications

    Brand

    Amperage

    • 20 A

    Hazardous Area Classification

    • Class I, Division 1, & 2, Groups C, D

    Horsepower Ratings

    • 1

    Materials & Finishes

    • Receptacles, Covers, Caps & ECP Plugs are Copperfree (4/10 of 1% Max.) Aluminum with Epoxy Powder Coat. Mounting Box is Malleable Iron with Triple-coat (1) Zinc Electroplate, (2) Chromate & (3) Epoxy Powder Coat Finish. Insulating Blocks are Fiber Glass R

    Mounting Box Entries

    • Dead-End or Feed-Thru

    Number of Poles

    • 3

    Number of Wires

    • 2

    Plug Cable Diameter

    • .538 - .639"

    Voltage

    • 125-250 Vac, 125 Vac or 18 Vdc
