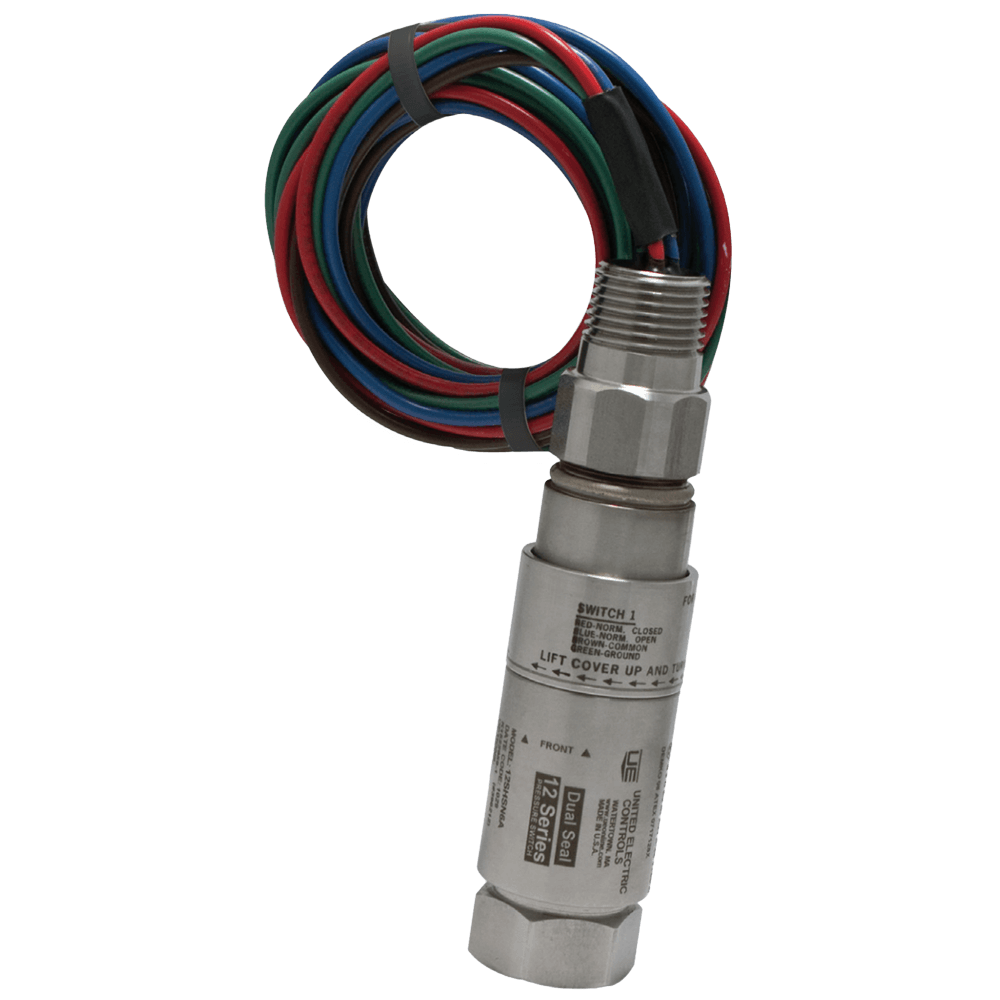

12 Series Sensor Type 2 Pressure Switch
Brand: United Electric Controls Ltd.12 Series hazardous location switches are ideal for operation in tough applications where space is at a premium. A snap-action Belleville spring assembly is used in most models to provide vibration resistance and prolonged switch life. The 316 stainless steel enclosure and hermetically sealed switch provide rugged protection from the environment.
Approved for use in hazardous locations worldwide, the 12 Series is installed within applications ranging from offshore oil rigs to rotating equipment, and more.
Features- UL, cUL, ATEX and IECEx approved for Div. 1 or Zone 1 hazardous locations; CE compliant
- Dual seal compliant to ANSI/ISA 12.27.01 & NEC 501.17
- Pressure switch wetted parts are NACE MR-0175 compliant
- Snap-acting Belleville spring for long life, vibration resistance and stability
- Optional Hastelloy® and Monel® sensor material for corrosive media
- Optional medium-pressure and high-pressure autoclave pressure connections
- Mounting bracket available for retrofit applications
Specifications
Adjustment Type
- External Ground Screw
- Factory Set (Pre-Set)
Ambient Temperature Range
- -50° to 80° C (-58° to 176° F) - Set Point Shifts less than 1% of Range for a 28° C (50° F) Ambient Temperature Change
Applications
- Chemical Plants & Refineries
- Instrument Panels
- Offshore Platforms
- Rotating Equipment
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- ABNT NBR IEC 60079-0, 60079-1, 60079-31 Certificate # UL-BR 15.0174X
- ATEX Directive 94/9/EC II 1 G Ex Ia IIC T6 Ga Tamb: -50° to 60° C (-58° to 140° F) UL International Demko A/S (N.B.# 0539) Certificate # Demko 11-ATEX-1105261X EN 60079-0, 60079-11,60079-26
- ATEX Directive 94/9/EC II 2 G Ex D IIC T6 Gb II 2 D Ex Tb IIIC T85° C (185° F) Db Tamb: -50° to 80° C (-58° to 176° F) UL International Demko A/S (N.B.# 0539) Certificate # Demko 08-ATEX-0717128X EN 60079-0, 60079-1, 60079-31
- CE
- CRN
- CSA C22.2 No. 14, 25 & 30 - File # E40857
- Dual Seal Certified to ANSI/ISA 12.27.01 (Meets CEC & NEC Secondary Seal Requirements) Standard on Straight
- EAC Flameproof Junction Box, Pre-Wired
- GOST-R 0Ex Ia IIC T6 Ga x Tamb: -50° to 60° C (-58° to 140° F)
- GOST-R 1Ex D IIC T6 Gb x Tamb: -50° to 80° C (-58° to 176° F) NANIO CCVE Certification Center Certificate # RU C-US.ГБ05.B.01185 ГOCT P MЭК 60079-0, 60079-11, 60079-1, 60079-31, ГOCT 31610.26, IEC 60079-26
- GOST-U 1 ExdIICT6X Tamb: -56° to 85° C (-68.8° to 185° F) SVODOTSTVO #719 by DVSTS VE (TCCExEE)
- IEC Ex Certified Ex D IIC T6 Gb Ex Tb IIIC T85° C (185° F) Db IP66 Tamb. = -50° to 80° C (-58° to 176° F) IEC 60079-0, 60079-1, 60079-31 IEC 60079-0, 60079-1, 60079-31 Certificate # IECEx UL 14.0072X
- IEC Ex Ia IIC T6 Ga Tamb. = -50° ≤ Tamb ≤ 60° C IEC 60079-0, 60079-11 Certificate # IECEx UL 14.0075X
- INMETRO Ex D IIC T6 Gb Ex Tb IIIC T85° C Db IP66 -50° C ≤ Tamb ≤ 80° C
- Low Voltage Directive (LVD) 2006/95/E
- PESO Ex Ia IIC T6 Ga Tamb: -50° to 60° C (-58° to 140° F) UL International Demko A/S (N.B.# 0539) Certificate # P305465 / 1 EN 60079-0, 60079-11, 60079-26
- PED: 97/23/E
- UL (C,US) 508 & 1203, Class I, Division 1 & 2, Groups A, B, C, D Class II, Division 1 & 2, Groups E, F, G Class III Class I, Zone 1, Group IIC Enclosure Typical 4X
Conduit Connection
- 1/2" NPT Male
- M20
Cover Type
- Cover Lock
Deadband
- psi: 2 to 125 (kPa: 13.79 to 861.8, bar: 0.1 to 8.6)
Diaphragm Material
- 316 Stainless Steel
Electrical Connectors
- 1/2" NPT Male with 72" Leadwires
- 4-Terminal DIN Connector (DIN 43650 Form A)
- Common
- Junction Box
- M20 Metric Threads, 72" Leads
Electrical Contacts
- Bifurcated Gold Contacts
- Normally Closed
- Normally Open
- Silver
Electrical Rating
- 1 A at 125 Vac, 1 A Resistive & 0.5 A Inductive at 28 Vdc
- 5 A at 125/250 Vac, 5 A Resistive & 3 A Inductive at 28 Vdc
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- Flameproof
- Intrinsically Safe
- IP66
- Typical 4X
- Typical 7
- Typical 9
- Vibration-Proof
Mounting
- Bracket
- Pipe
NACE & NIST
- NACE MR-0175 Compliant
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Female
- 1/4" NPT Female
Orifice Size
- 0.72" (18.28 mm)
Overpressure & Static Pressure Limits
- Over Range Pressure - psi: 1,000 to 1,500 (kPa: 6,895 to 10,340, bar: 68.9 to 103.4)
Process Connection Material
- 316 Stainless Steel
Process Temperature
- -45° to 204° C (-50° to 400° F)
Proof Pressure
- psi: 2,500 (kPa: 17,200, bar: 172)
Repeatability
- Set Point Repeatability: ± 1.5% of Adjustable Range
Service
- Oxygen Service Cleaned in Accordance with ASTM G93, Verification Typical 1, Tests 1 through 3
Set Point - Decreasing
- bar: 0.7 to 58.6
- kPa: 68.9 to 5,861
- psi: 10 to 850
Set Point - Increasing
- bar: 0.7 to 58.6
- kPa: 68.9 to 5,861
- psi: 10 to 850
Shock
- Set Point Repeats after 75 G, 10 milliseconds
Storage Temperature
- -50° to 80° C (-58° to 176° F)
Switch Type
- One SPDT, Hermetically Sealed
- Two SPDT for DPDT Action, Hermetically Sealed
System Pressure
- bar: 68.9 to 103.4
- kPa: 6,895 to 10,340
- psi: 1,000 to 1,500
Vibration
- Set Point Repeats after 15 G, 10 to 2000 Hz
