Wilkerson WBA208 Series Precision Pneumatic Input Signal Amplifier / High Precision Regulator, Precisely control output pressure
Images are representations only.

WBA20822I

Series: WBA208 Series Precision Pneumatic Input Signal Amplifier Brand: Wilkerson Corporation
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Pilot Ratio - 1:2
  • Port Size - 1/4" NPT
  • Tapped Exhaust - No
  • Thread Type - NPT
  • Bypass Valve - Yes

Specifications

Brand

Maximum Output Pressure, psig (bar)

  • 150 (10.0)

Maximum Supply Pressure, psig (bar)

  • 250 (17.0)

Flow Capacity SCFM, (m3/HR)

  • 45 (76.5)

Exhaust Capacity SCFM, (m3/HR)

  • 11 (18.7)

Sensitivity (Water Column)

  • 1:1 : .250" (.64 cm)
  • 1:2 : .500" (1.27 cm)
  • 1:3 : .750" (1.9 cm)

Ratio Accuracy

  • 1.0

Supply Pressure Effect, psig (bar)

  • 1:1 : 0.10 (.007)
  • 1:2 : 0.20 (.014)
  • 1:3 : 0.30 (.021)

Ambient Temperature, °F (°C)

  • -40 to +200 (-40 to +93)

Documentation

Data Sheets

Catalogs

View Product Series

Similar SKUs

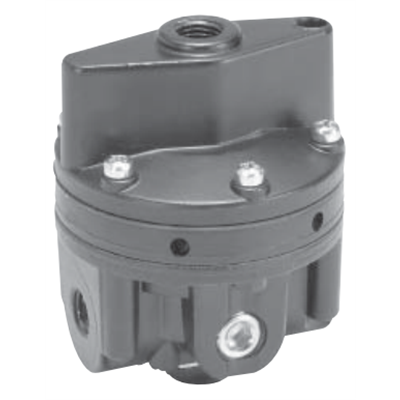

WBA20822HI
