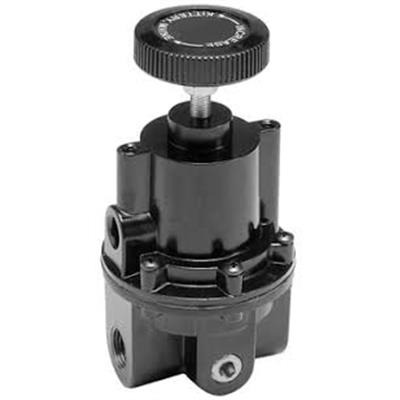

Wilkerson P19 Series High Flow Precision Regulator, Port Sizes 1/4, 3/8; Flows to 80 SCFP19 Series

Images are representations only.

P19-03-00

Series: P19 Series High Flow Precision Regulator Brand: Wilkerson Corporation

Price

Request a Quote

Stock

Out of Stock

Quantity

Request Information

Port Size - 3/8"

Specifications

Brand

Wilkerson Corporation

Flow Capacity at 100 psig Supply, 80 psig Outlet

1/4": 80 SCFM (37.8 m3/s)
3/8": 80 SCFM (37.8 m3/s)

Operating Pressure Range

Primary - Maximum: 250 PSIG (17.2 bar)

Operating Temperature

-40° to 160° F (-40° to 71° C) Temperatures below (0° C) 32° F require moisture-free air

Effect of Supply Pressure Variation

Less than 0.1 PSIG for 100 PSIG (6.89 bar) change

Exhaust (Relief) Capacity

4 SCFM with downstream pressure 5 PSIG above set pressure. Exhaust commences at 0.01 PSIG above set pressure.

Inches of Water Column

1/4"

Port Threads

1/4"
3/8"

Gauge Ports (2x) Can be Used as Additional Full Flow 1/4" Outlet Ports

Two Ports, 1/4"

Response

250 ms (The valve will open to full flow and fill a volume of 1250 cm3)

Constant Bleed Rate

1.0 to 12.5 SCFH (depending on output pressure)

Repeatability / Sensitivity

±0.010 PSIG (±0.00068 bar)

Weight

1.6lb. (0.74 kg)
