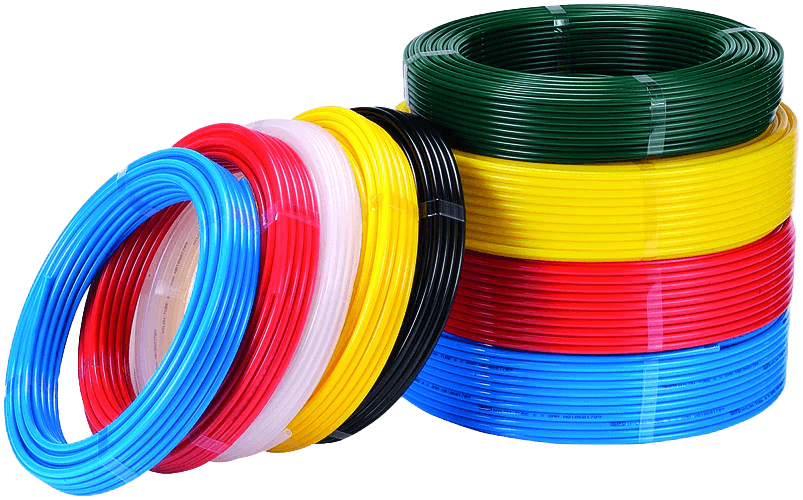

TVG007 Plastic Hose
Brand: Burkert Fluid Control SystemsSynthetic hoses made from polyurethane (PUR), polyamide (PA soft) and polyethylene are durable at room temperature against water and oil. They are especially suitable for compressed air piping. They are available in 164 and 328 feet (50 and 100 meter) rolls. The life span depends on the intensity of the ambient temperature and the operational pressure. PTFE-hoses are suitable for high temperatures and against aggressive and respectively corrosive mediums; food industry suitable; only available in 164 feet (50 meter) rolls.
Features- Different versions
- PUR - thereby higher flexibility
- PA for higher pressure range
- PTFE for higher temperatures
- PE for standard applications
Specifications
Applications
- Corrosive Mediums
- Food Industry
Enclosure, Body Material
- Polyamide (PA 12)
- Polyethylene (PE)
- Polyurethane (PUR)
- PTFE
Length
- Roll: 164.04 feet (50 meters)
- Roll: 328.1 feet (100 meters)
Media
- Compressed Air
- Oil
- Water
Operating Pressure
- psi: 174 to 652.7 (kPa: 1,200 to 4,400, bar: 12 to 45) - PA 12 Flexible
- psi: 65 to 246.6 (kPa: 450 to 1,700, bar: 4.5 to 17) - LDPE Synthetic
- psi: 72.5 to 333.6 (kPa: 500 to 1,200, bar: 5 to 23) - PUR Synthetic
- psi: 79.7 to 290 (kPa: 550 to 2,000, bar: 5.5 to 20) - PTFE Hose
Temperature Range
- LDPE Synthetic Hose: -30° to 70° C (-22° to 158° F)
- PA 12 Flexible: -40° to 90° C (-40° to 194° F)
- PTFE Hose: -196° to 250° C (-320.8° to 482° F)
- PUR Synthetic Hose: -40° to 85° C (-40° to 185° F)
