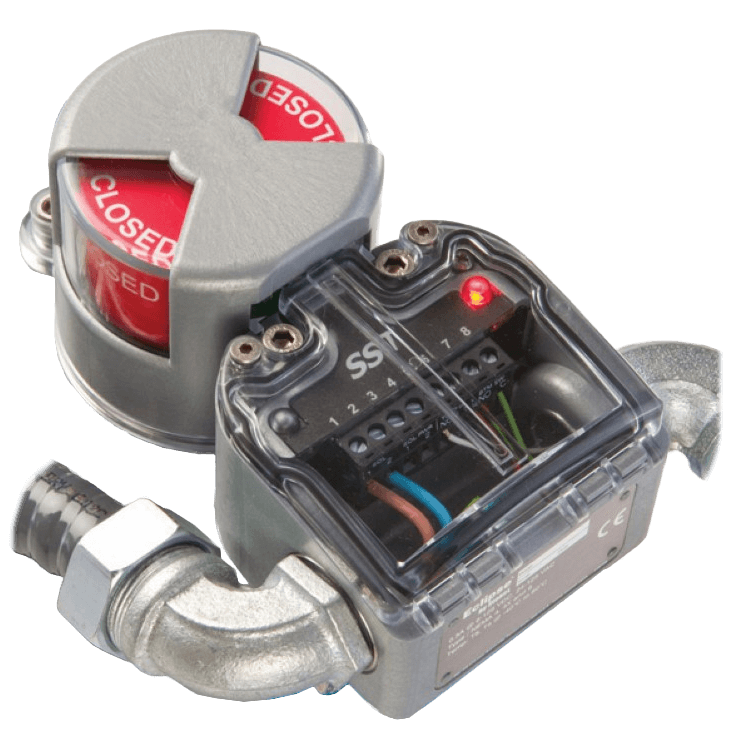

Eclipse EN/EG On/Off Valve Monitor
Brand: MetsoStoneL’s Eclipse features dual solid state sensors with optional communications neatly integrated into a sealed module.
The function module and trigger/indicator attach quickly and conveniently to standard VDI/VDE 3845 (NAMUR) actuator accessory mounting pads.
The Eclipse series is available in nonincendive and intrinsically safe versions (EN) for hazardous areas and in a general-purpose completely sealed microconnector version (EG).
Features- No moving mating parts assure long life and trouble-free operation
- Red/green visual indicator boldly displays valve status, and coordinates with red/green LEDs
- Direct attachment to ISO/NAMUR mounting pads with simple mounting kit (sold separately)
- High intensity red and green LEDs indicate electronic switch status to confirm electrical operation
- Sensor triggers are adjustable in 3.5 degree increments through 360 degrees for precision and flexibility
- Submersible and capable of high pressure washdown, Eclipse sensors and electronics are fully sealed to eliminate hazard threat and corrosion problems
Specifications
Brand
Approvals & Certifications
- CEC
- IEC
- NAMUR
- NEC
- VDI/VDE 3845
Communication
- AS-Interface
- Baud Rate: 125, 250, 500 Kbps - DeviceNet (92)
- DeviceNet
Conduit Connection
- 1/2" NPT Female
- M20 Female
- Micro Connector (5-Pin, 4-Pin)
- Mini Connector (5-Pin, 4-Pin, 3-Pin)
Configuration
- 4-20 mA Auxiliary Analog Input - DeviceNet (92)
- Auxiliary Discrete Input - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- Discrete Input - DeviceNet (92), AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- NAMUR Sensor (EN 60947-5-6, I.S) - NAMUR Sensor
- Power Output - DeviceNet (92), AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- Solid State Sensor - Stainless Steel Switching Sensor
- Wire Terminations - Stainless Steel Switching Sensor, NAMUR Sensor
Connection Material
- Quick Connectors: Stainless Steel
Current
- Maximum
- Minimum on Current: 2 mA - Stainless Steel Switching Sensor
- Target Off I> 3 mA - NAMUR Sensor
- Target on I< 1 mA - NAMUR Sensor
Electrical Connectors
- Terminal Strip
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- Maximum
Enclosure, Body Material
- Lexan® Polycarbonate
Environmental Protection
- IP66
- IP67
- NEMA 4
- NEMA 4X
- NEMA 6
Indication
- Visual: Red/Green LED's
Input
- Auxiliary: 24 Vdc at 2 mA (Self-Powered) - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
Materials of Construction
- Drum Components: Polycarbonate
- Fasteners, Triggers & Coupling: Stainless Steel
Operation
- Normally Closed (Solid State) - NAMUR Sensor
Output
- 2 W at 24 Vdc - AS-Interface VCT with Extended Addressing (97)
- 21-26 Vdc - AS-Interface (96), AS-Interface VCT with Extended Addressing (97)
- 24 Vdc (Input Voltage Ranging from 10-24 Vdc) - DeviceNet (92)
- 4 W at 24 Vdc Both Outputs Combined - DeviceNet (92), AS-Interface (96)
Rotation
- 0° to 90°
Temperature Range
- -40° to 80° C (-40° to 176° F)
Voltage
- 24-125 Vac - Stainless Steel Switching Sensor
- 5-25 Vdc - NAMUR Sensor
- 8-125 Vdc - Stainless Steel Switching Sensor
Voltage Drop
- 7.5 V at 100 mA - Maximum
- Maximum
