Wilkerson P19 Series High Flow Precision Regulator, Port Sizes 1/4, 3/8; Flows to 80 SCFP19 Series

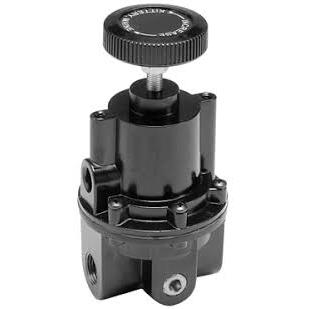

Images are representations only.

P19 Series High Flow Precision Regulator

Brand: Wilkerson Corporation
Request Information
Favorite

Specifications
  • Adjusting Knob
  • Diaphragm Design for Good Repeatability, Response and Sensitivity
  • Balanced Poppet
  • Two Full Flow Gauge Ports
  • Precise Regulation: Senses a decrease in Downstream Pressure as small as 1/4" of Water
  • High Flow Capacity: Flows of 80 SCFM Attainable with Minimal Drop
  • Stable Output: Dampening Action of Aspiration Tube makes Regulator; Insensitive to Changes in Flow
  • On-line Maintenance: Can be serviced without removal of air line

Displaying prices & availability for Ohio, United States in USD. Change location.

Models matching criteria: 8
P19-02-H00
  • Port Size - 1/4"
  • Pressure Range - Reduced Pressure Range 0-150 psig
Out of Stock
P19-03-H00
  • Port Size - 3/8"
  • Pressure Range - Reduced Pressure Range 0-150 psig
Out of Stock
P19-02-A00
  • Port Size - 1/4"
  • Pressure Range - Reduced Pressure Range 0-2 psig
Out of Stock
P19-03-00
  • Port Size - 3/8"
Out of Stock
P19-02-C00
  • Port Size - 1/4"
  • Pressure Range - Reduced Pressure Range 0-30 psig
Out of Stock
P19-03-C00
  • Port Size - 3/8"
  • Pressure Range - Reduced Pressure Range 0-30 psig
Out of Stock
P19-02-D00
  • Port Size - 1/4"
  • Pressure Range - Reduced Pressure Range 0-60 psig
Out of Stock
P19-03-D00
  • Port Size - 3/8"
  • Pressure Range - Reduced Pressure Range 0-60 psig
Out of Stock

View Details

Specifications

Brand

Flow Capacity at 100 psig Supply, 80 psig Outlet

  • 1/4": 80 SCFM (37.8 m3/s)
  • 3/8": 80 SCFM (37.8 m3/s)

Operating Pressure Range

  • Primary - Maximum:  250 PSIG (17.2 bar)

Operating Temperature

  • -40° to 160° F (-40° to 71° C) Temperatures below (0° C) 32° F require moisture-free air

Effect of Supply Pressure Variation

  • Less than 0.1 PSIG for 100 PSIG (6.89 bar) change

Exhaust (Relief) Capacity

  • 4 SCFM with downstream pressure 5 PSIG above set pressure. Exhaust commences at 0.01 PSIG above set pressure.

Inches of Water Column

  • 1/4"

Port Threads

  • 1/4"
  • 3/8"

Gauge Ports (2x) Can be Used as Additional Full Flow 1/4" Outlet Ports

  • Two Ports, 1/4"

Response

  • 250 ms (The valve will open to full flow and fill a volume of 1250 cm3)

Constant Bleed Rate

  • 1.0 to 12.5 SCFH (depending on output pressure)

Repeatability / Sensitivity

  • ±0.010 PSIG (±0.00068 bar)

Weight

  • 1.6lb. (0.74 kg)
