Emerson Appleton AUTO-LOC Heavy-Duty Cord Reel, 8700 Series
Images are representations only.

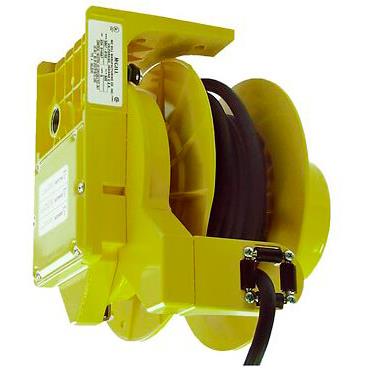

McGill™ 8700 Series AUTO-LOC Heavy-Duty Cord Reels

Brand: Appleton

8700 Series AUTO-LOC Cord Reels feature heavy gauge, powder coated steel construction in a water-tight and dust-tight NEMA 4 housing suitable for indoor or outdoor locations. The self-contained, heavy-duty spring provides long life in rugged industrial applications. Models are available with 3 or 4 conductors, in cable lengths from 12.2 to 21.3 meters (40 to 70 feet). The cable ratchet can be disabled to accommodate hoists and other applications that require constant cable tension.
Features
  • Weather-tight, dust-tight, corrosion resistant construction for heavy-duty industrial applications.

  • Ideal for hoists, electric tools, and moving equipment.

  • Sufficient spring tension to provide no more than 10% sag when cable is stretched horizontally.

  • Fully adjustable four roller cable guide to minimize cable wear.

  • Long life, self-contained mainspring.

  • Furnished with black SO cable with up to 12 conductors.

  • Removable ratchet for application flexibility.

  • 30-75 Amp, 600 V modular collector ring designed for long service life.

  • 330° pivot bases available for 2-6 conductor reels.

  • 1” NPT line entry in junction box.

    • Specifications

    Brand

    Approvals & Certifications

    • 8706 & 8707 are UL Listed for Ordinary Locations. 8729 is Rated for Ordinary Locations. All Cord Reels are CSA Listed for Ordinary Locations. NEMA 4

    Cable Length

    • 40, 50 or 70 feet

    Materials & Finishes

    • 8706 & 8707 are Constructed of Die Cast Aluminum. 8729 is Constructed of Heavy Gauge Steel. All Reels have A Yellow Polyester Powder Coat & Black SO Cable

    Mounting Type

    • Can be either Ceiling or Wall Mounted

    Number of Conductors

    • Up to 12-Conductors

    Rating

    • Based on SO Cord Typical: 14 Amp, 600 Vac 18 Amp, 600 Vac
