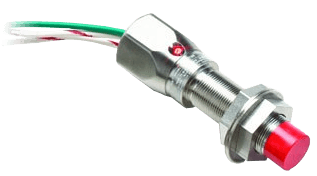

Hawkeye HK Linear Point Sensor
Brand: Metso
The solid state Hawkeye sensor is ideal for point sensing in corrosive and hazardous process environments.
The standard red/green LEDs also speed your setup and installation by confirming power up and switch status.
Features- Sensing head triggers on any metal
- Stainless steel body is rugged and corrosion proof
- Stainless steel washers and fasteners secure Hawkeye permanently to mount
- Circuit is conformally coated and potted
- High intensity LED brightly displays switch status
- 1/2" conduit entry or mini-connector available
Specifications
Brand
Approvals & Certifications
- NAMUR (EN 60947-5-6)
Cable Length
- Wire: 36" (0.9 meters)
Conduit Connection
- 1/2" NPT Female
Configuration
- PNP - Sourcing Sensor
Connection Material
- 3-Pin Mini-Connector: Stainless Steel
Cover Material
- Sensing Head: Polycarbonate (Lexan)
Current
- 2 mA Minimum - Sourcing Sensor, Stainless Steel Switching Sensor
- 200 mA - Maximum
- Current Rating (Target Off): > 3 mA - NAMUR Sensor
- Current Rating (Target On): < 1 mA - NAMUR Sensor
- Inrush: 1 A, Maximum
- Leakage: 0.5 mA - Maximum
Distance
- Sensing: 0.15" to 0.23" (4 to 6 mm)
Electrical Connectors
- 18 AWG Multi-Strand
- 3-Pin Mini Connector
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- Continuous: 0.1 A at 125 Vac/Vdc, Maximum
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- Intrinsically Safe (Ex Ia, Zone 0 or Class I & II, Division 1)
- IP66
- IP67
- NEMA 4
- NEMA 4X
- NEMA 6
- Non-Incendive (Class I & II, Division 2)
Indication
- Status: Red/Green LED
Lens
- LED: Polycarbonate Lens
Materials of Construction
- Fastener: 316 Stainless Steel
- Washer, Fastner: Stainless Steel
Operation
- Normally Closed (Solid State)
- Normally Open (Solid State)
Sensor, Probe Material
- Hawkeye Sensor: 316 Stainless Steel
Temperature Range
- -40° to 80° C (-40° to 176° F)
Voltage
- 24-125 Vac - Stainless Steel Switching Sensor
- 5-25 Vdc - NAMUR Sensor
- 6-28 Vdc - Sourcing Sensor
- 8-125 Vdc - Stainless Steel Switching Sensor
Voltage Drop
- Maximum
