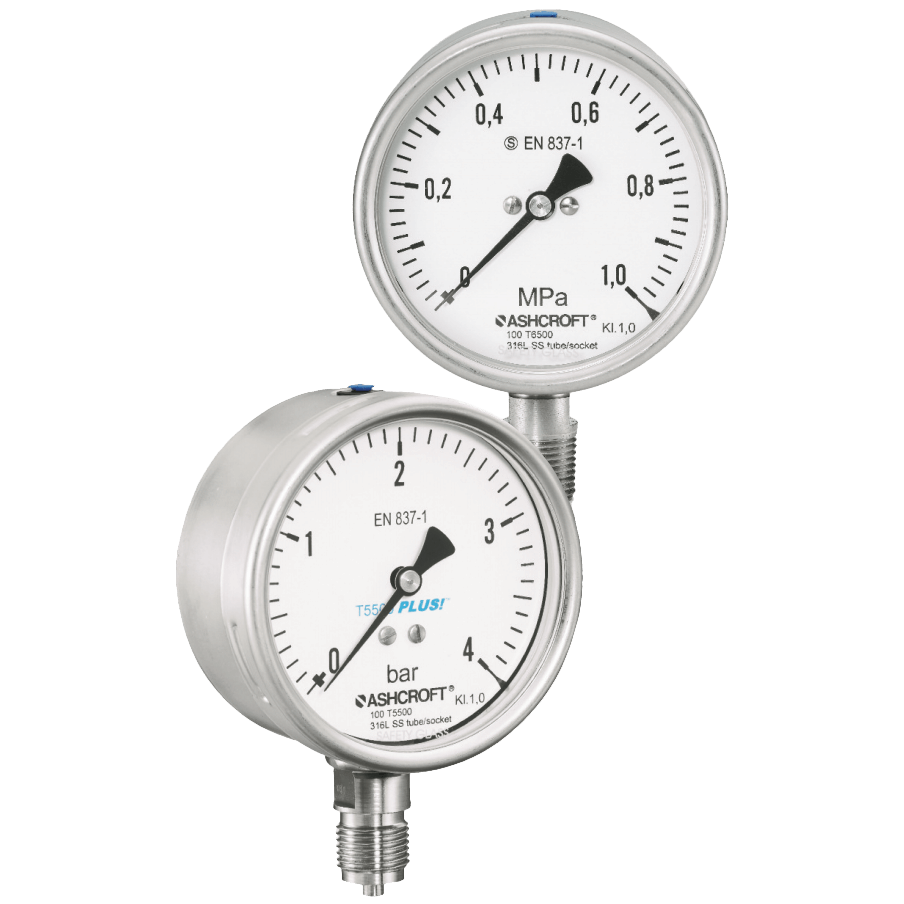

T5500/T6500 All-Welded Stainless Steel Process
Brand: Ashcroft Inc.The Ashcroft ® T5500 and T6500 all stainless steel process pressure gauge is one of the finest production gauges on the market for industrial use where precise indications are required. Industries served include chemical, petrochemical, power, machine, pulp, paper, food and beverage applications.
The product line offers either open or solid front design depending on your safety requirements.
These gauges are available with 100 or 160mm case sizes, stainless steel or Monel wetted systems and psi or metric pressure ranges
Features- PLUS!™ Performance dampens vibration, shock and pulsation effects
- Rugged all welded stainless steel design
- Overload protection to 400% of range (XRA option)
- Low ambient temperature option for arctic conditions from -94°F (-70°C) for T6500 100mm only
- Optional ATEX approved II 2 GD c
Specifications
Brand
Accuracy
- 0.5% of Full Scale
- Standard Class 1: 1% of Full Scale
Ambient Temperature Range
- -40° to 93° C (-40° to 200° F)
Applications
- Chemical & Petrochemical Plants Offshore Oil Rigs
- Food & Beverage
- Machine Equipment
- OEM Equipment
- Power
- Pulp & Paper
Approvals & Certifications
- ATEX
- CE
- CRN
BSP Connection
- G 1/2" Male
- G 1/4" Male
Electrical Protection
- Overload Protection
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
- Weatherproof
Fill Material
- Glycerin
- Halocarbon
- Silicone
Lens
- Acrylic Lens
- Glass Lens
- Laminated Safety Glass
- Shatterproof Glass
Materials of Construction
- Bourdon Tube & Socket: 316L Stainless Steel
- Dial: Aluminum, White Background, Black Figures & Intervals
- Socket: Monel®
Mounting
- Flush
- Stem
- Surface
Movement
- 303 Stainless Steel
- 304 Stainless Steel
- 316 Stainless Steel
Name Plate, Tag Material
- Stainless Steel
NPT Connection
- 1/2" NPT Male
- 1/4" NPT Male
Pressure Range
- bar: 0 to 1,034
- Inches Hg: -30 to 0
- kPa: 0 to 103,400
- psi: 0 to 15,000
Pressure Type
- Compound Pressure
- Gauge
- Vacuum
Process Temperature
- Dry: Maximum
- Liquid Filled: Maximum
Ring Material
- 304 Stainless Steel
- 316 Stainless Steel
Size
- Dial: 3.9" (100 mm)
- Dial: 6" (160 mm)
