Emerson Appleton Luminaire, LED Series
Images are representations only.

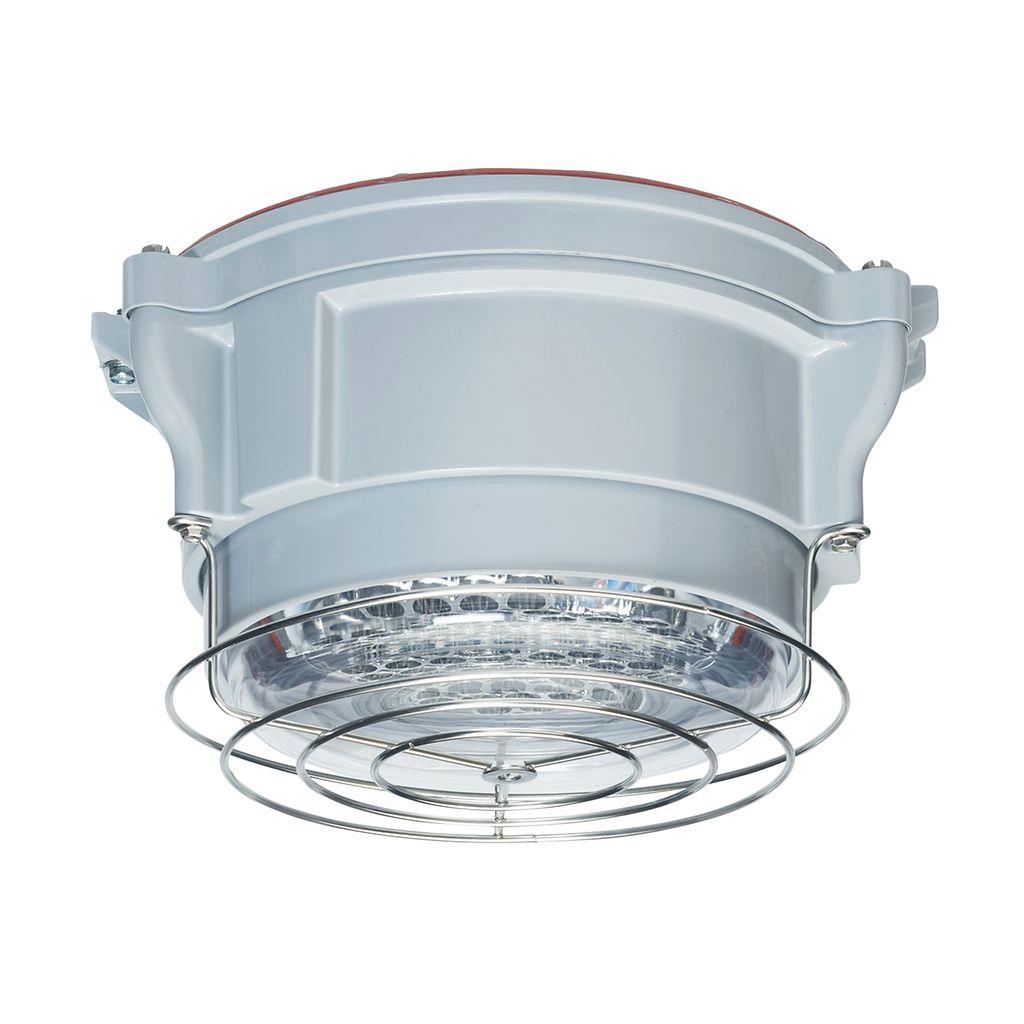

Appleton™ Contender™ LED Series Luminaires

Brand: Appleton
Request Information
Favorite

Contender™ LED Luminaires deliver exceptional efficiency, performance and advanced engineering. The compact light weight low profile design is suited for low mounting heights. With four different field replaceable globe options (clear and diffused polycarbonate, clear glass, or prismatic glass refractor) it can be customized to application requirements. With three light output levels, it is ideal for retrofitting HID fixtures up to 175 Watts. The Contender™ LED is designed to mount directly to a select offering of competitor?s mounting hoods.
Features
  • Enclosed and gasketed fixtures suitable for use in a wide range of industrial, chemical processing and other areas where flammable gases, vapors and combustible dusts and fibers are present including simultaneous exposure.
  • Suitable for use in marine and wet locations.
  • Ideal for use in areas of low clearance, low ceiling heights or where fixture weights must be minimized.
  • Typical industries include pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste treatment, mining and steel mills.
  • Typical applications include walkways/catwalks, stairwells, grain elevators, tunnels, pipe racks, offshore rigs, vessel lighting, cooling towers and processing areas.
  • Compact light weight low profile design is suited for low mounting heights (less than 12 lbs).
  • Customize to the application requirements with four different field replaceable globe options: clear and diffused polycarbonate, clear glass, or prismatic glass refractor.
  • Three light output levels for retrofit of HID fixtures up to 175 W.
  • Standard 6 kV surge protection.
  • Luminaire comes pre-wired with 12? of 14 AWG SOOW cable protruding from the IP68 watertight NPT hub at the top of the luminaire lid.

    • Specifications

    Brand

    Ambient Temperature Range

    • BU: -40° C to +65° C (-40° to +149° F), BH: -40° C up to +65° C (-40° F up to +149° F)

    Lumens to Watts

    • 3300 Lumens is 70-100 W HID, 4400 Lumens is 100-150 W HID, 5500 Lumens 150-175 W HID

    NEC/CEC Certifications & Compliances

    • Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Groups E, F, G, Zone 21, 22, Group IIIC, Class II, Division 2, Groups F, G, Class III, Typical 3R, 4, 4X, IP66/67, Simultaneous Exposure, Suitable for Wet Locations,

    Options

    • Glass Globe & Glass Refractor Guard Available Separately

    Standard Finishes

    • Luminaire Body & Glass Refractor Guard have Gray Epoxy Powder Coat Finish, Electrostatically Applied for Complete Uniform Protection

    Standard Materials

    • Cast Copperfree (4/10 of 1% Max.) Aluminum Luminaire Body with Stainless Steel Hardware. Polycarbonate or Glass Globe with Stainless Steel Wire Guard. Heat-Resistant Prismatic Glass Refractor with Die Cast Aluminum Guard. Fiberglass Reinforced White Poly
