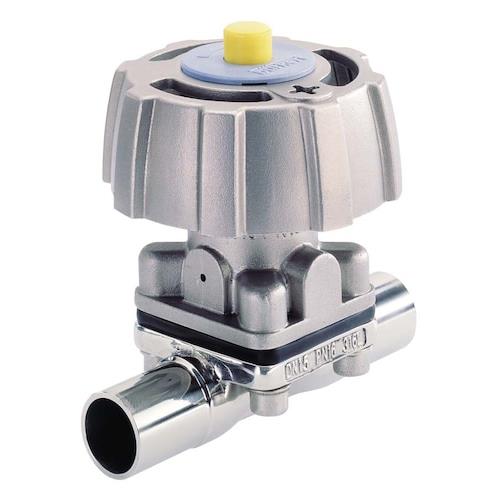

Type 3233 Manually Operated 2-Way Diaphragm Valve with Stainless Steel Body
Brand: Burkert Fluid Control SystemsThe 3233 manually-operated diaphragm valve in compact form consists of a flow-optimized cast stainless steel body with various surface finishes, a diaphragm and a manual actuator. The material combinations are selectable. The diaphragm is both a switch element and a sealing element to the outside. It can be easily replaced. The flow can be continually adjusted with the manually actuator.
The valves have no dead volume and can be mounted to be self-draining. This enables high flow capacities and a variety of applications to be realized. The valves are autoclavable.
Features- Hermetical separation of fluids from the operating mechanism by diaphragm
- Quality certifications FDA
Documentation
Document
- Advantages Tube Valve Body EN pdf 150 KB
- Diaphragm competence for hygienic applications EN pdf 1.1 MB
- EU DoC EU Declaration pdf 2.0 MB
- Typ 3233 Datenblatt handbet tigtes Membranventil mit Feingussgeh use DE pdf 1.2 MB
- Typ 3233 Datenblatt handbet tigtes Membranventil mit Rohrumformgeh use DE pdf 1.1 MB
- Typ 3233 Datenblatt handbet tigtes Membranventil mit Schmiedegeh use DE pdf 1.2 MB
- Type 3233 fiches techniques Vanne manuelle membrane corps forg FR pdf 1.1 MB
- Type 3233 fiches techniques Vanne manuelle membrane corps moul FR pdf 1.3 MB
