Burkert Fluid Control Systems 2/2-Way Plunger-Solenoid Valve with Separating Diaphragm, Type 0117
Images are representations only.

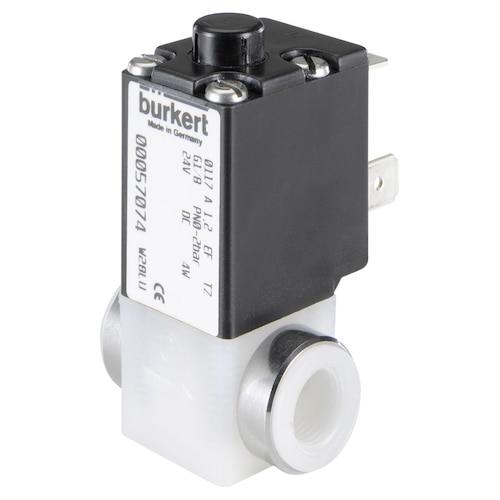

Type 0117 2/2-Way Plunger-Solenoid Valve with Separating Diaphragm

Brand: Burkert Fluid Control Systems
Request Information
Favorite

Type 117 is a normally-closed direct-acting plunger-type solenoid valve with PTFE-coated diaphragm. The diaphragm isolates the fluid from the solenoid system. When deenergized (in circuit function A) the valve is closed by spring action. When energized, the solenoid armature is drawn in 2/2-Way, G 1/8, UNF 1/4-28 Fluid Control Systems against a spring to open the valve. The solenoid epoxy encapsulation efficiently dissipates the heat generated by the coil.
Features
  • Compact design.
  • Low electrical power consumption.
  • Short response times.
  • Hermetically sealing isolating diaphragm.
  • Non-metallic valve internals.
