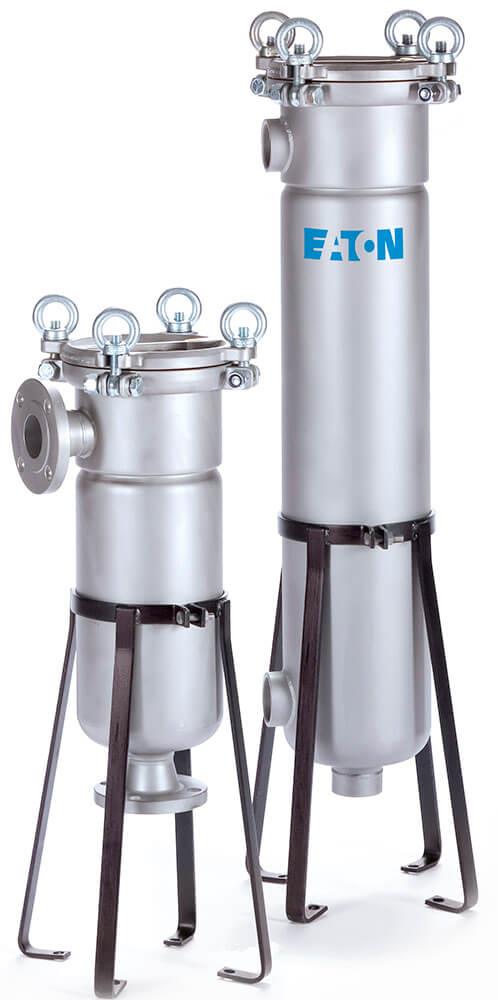

FLOWLINE II Bag Filter Housing
Images are representations only.

FLOWLINE II Bag Filter Housing

Brand: Eaton Corporation
Request Information
Favorite

The FLOWLINE II bag filter housings offer the most cost-effective solution to single bag filter housing requirements. Its unique one-piece body design eliminates the traditional body to bottom cap circumferential weld and provides a secure, no by-pass internal seal for operational integrity. The FLOWLINE II is available with Eaton’s new Splash Guard safety accessory option.
Features
  • Side inlet piping connection.
  • Outlet connection choices are bottom, side or loop.
  • Sizes for #01 single or #02 double-length filter bags.
  • Buna-N™ cover seal.
  • Buna-N™basket seal.
  • Stainless steel basket.
  • 2" NPT threaded or 2" RF 150-lb ANSI flanged connections.
  • Maximum operating pressure of 150 psi.
  • Maximum operating temperature of 250F.
  • Evacuation cover with swing bolt closures.
  • Heavy duty adjustable mounting legs.
  • Carbon steel, type 304 or 316 stainless steel construction.
